Displaying the Status of Commands and Subsystems

If you are using the command-based programming features of WPILib, you will find that they are very well integrated with SmartDashboard. It can help diagnose what the robot is doing at any time and it gives you control and a view of what’s currently running.

Overview of Command and Subsystem Displays

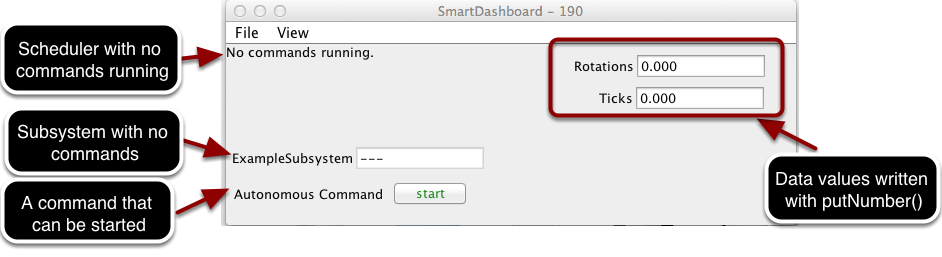

With SmartDashboard you can display the status of the commands and subsystems in your robot program in various ways. The outputs should significantly reduce the debugging time for your programs. In this picture you can see a number of displays that are possible. Displayed here are:

• The Scheduler currently with No commands running. In the next example you can see what it looks like with a few commands running showing the status of the robot.

• A subsystem, ExampleSubsystem that indicates that there are currently no commands running that are “requiring” it. When commands are running, it will indicate the name of the commands that are using the subsystem.

• A command written to SmartDashboard that shows a start button that can be pressed to run the command. This is an excellent way of testing your commands one at a time.

• And a few data values written to the dashboard to help debug the code that’s running.

In the following examples, you’ll see what the screen would look like when there are commands running, and the code that produces this display.

Displaying the Scheduler Status

JAVA

SmartDashboard.putData(CommandScheduler.getInstance());

C++

frc::SmartDashboard::PutData(frc2::CommandScheduler::GetInstance());

PYTHON

from wpilib import SmartDashboard
from commands2 import CommandScheduler
SmartDashboard.putData(CommandScheduler.getInstance())

Zamanlayıcının (Komutlarınızın çalışmasını zamanlayan kodun) durumunu görüntüleyebilirsiniz. Bu özellik aşağıda gösterilen şekilde Robot programınızdaki Robot constructor’ına tek bir satır ekleyerek etkinleştirilebilmektedir. Bu örnekte Zamanlayıcı örneği SmartDashboard’a putData metodu kullanılarak yazılmaktadır. Bu kod satırı önceki resimde görülen ekranı oluşturmaktadır.

This is the scheduler status when there are two commands running, ExampleCommand and newCommand. This replaces the No commands running. message from the previous screen image. You can see commands displayed on the dashboard as the program runs and various commands are triggered.

Displaying Subsystem Status

JAVA

SmartDashboard.putData(exampleSubsystem);

C++

frc::SmartDashboard::PutData(&exampleSubsystem);

PYTHON

from wpilib import SmartDashboard
SmartDashboard.putData(exampleSubsystem)

In this example we are writing the command instance, exampleSubsystem and instance of the ExampleSubsystem class to the SmartDashboard. This causes the display shown in the previous image. The text field will either contain a few dashes, --- indicating that no command is current using this subsystem, or the name of the command currently using this subsystem.

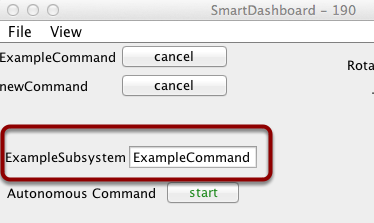

Running commands will “require” subsystems. That is the command is reserving the subsystem for its exclusive use. If you display a subsystem on SmartDashboard, it will display which command is currently using it. In this example, ExampleSubsystem is in use by ExampleCommand.

Activating Commands with a Button

JAVA

SmartDashboard.putData("Autonomous Command", exampleCommand);

C++

frc::SmartDashboard::PutData("Autonomous Command", &exampleCommand);

PYTHON

from wpilib import SmartDashboard
SmartDashboard.putData("Autonomous Command", exampleCommand)

Yukardaki kod, SmartDashboard’da bir komuta tuş oluşturmak için gerekli koddur. Tuşa basıldığında komut zamanlancaktır. Komut çalıştığı süre boyunca tuş etiketi start yerine cancel olacak ve tuşa basmak komutu iptal edecektir.

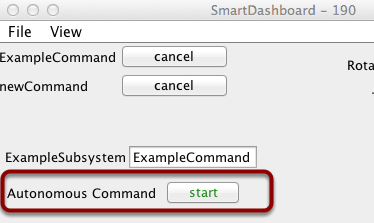

In this example you can see a button labeled Autonomous Command. Pressing this button will run the associated command and is an excellent way of testing commands one at a time without having to add throw-away test code to your robot program. Adding buttons for each command makes it simple to test the program, one command at a time.
