roboRIO网络故障排除

The roboRIO and FRC® tools use dynamic IP addresses (DHCP) for network connectivity. This article describes steps for troubleshooting networking connectivity between your PC and your roboRIO

使用mDNS 检查 roboRIO

The first step to identifying roboRIO networking issues is to isolate if it is an application issue or a general network issue. To do this, click Start -> type cmd -> press Enter to open the command prompt. Type ping roboRIO-#####-FRC.local where ##### is your team number (with no leading zeroes) and press enter. If the ping succeeds, the issue is likely with the specific application, verify your team number configuration in the application, and check your firewall configuration.

ping roboRIO IP的地址

If there is no response, try pinging 10.TE.AM.2 (TE.AM IP Notation) using the command prompt as described above. If this works, you have an issue resolving the mDNS address on your PC. The two most common causes are not having an mDNS resolver installed on the system and a DNS server on the network that is trying to resolve the .local address using regular DNS.

Verify that you have an mDNS resolver installed on your system. On Windows, this is typically fulfilled by the NI FRC Game Tools. For more information on mDNS resolvers, see the Network Basics article.
Disconnect your computer from any other networks. Removing any other routers from the system will help verify that there is not a DNS server causing the issue.

平失败

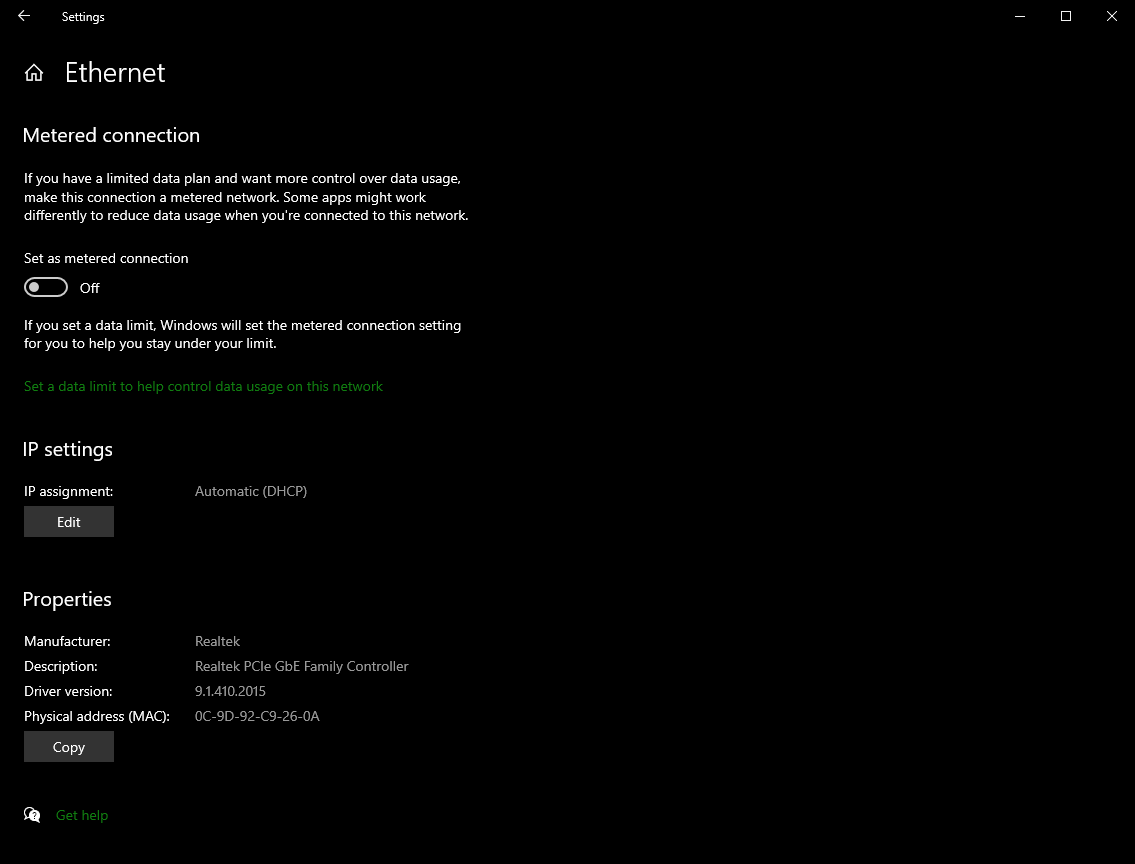

Windows 10+ image of the adapter setting

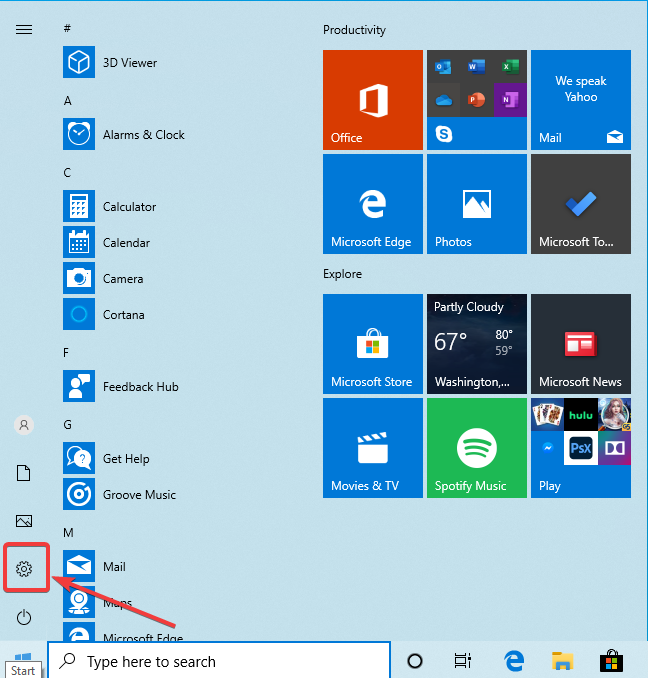

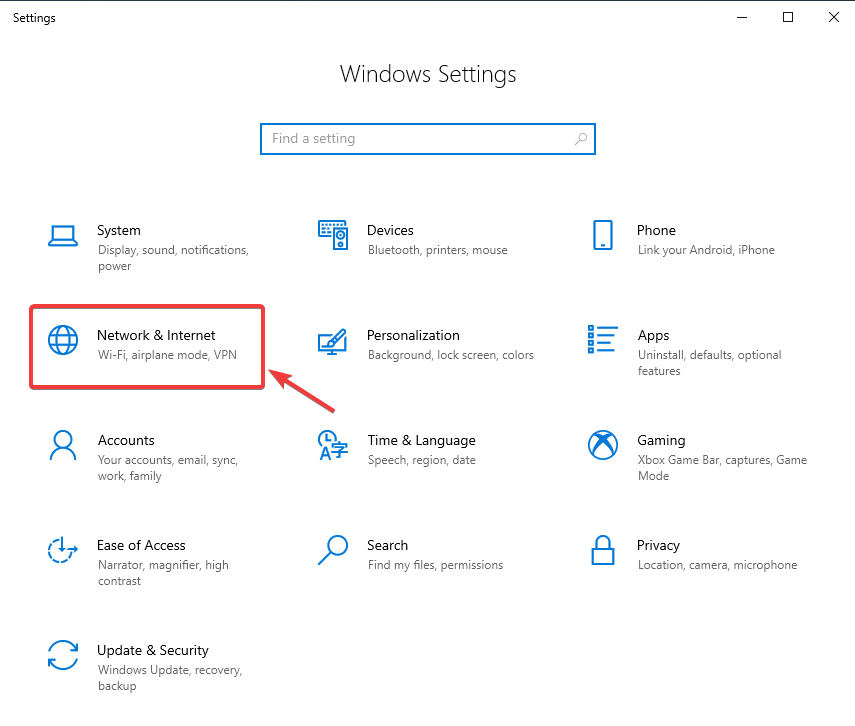

如果直接ping IP地址失败，则PC的网络配置可能有问题。 PC应该配置为“自动”。要检查这一点，请单击“开始”->“设置”->“网络和Internet”。根据您的网络，选择“ Wifi”或“以太网”。然后单击您所连接的网络。向下滚动到“ IP设置”，然后单击“编辑”，并确保选择了“自动（DHCP）”选项。

USB连接故障排除

如果您尝试对USB连接进行故障排除，请尝试ping roboRIO的IP地址。只要仅将一个roboRIO连接到PC，就应将其配置为172.22.11.2。如果无法ping通，请确保已连接roboRIO并为其供电，并且已安装NI FRC游戏工具。游戏工具会安装USB连接所需的roboRIO驱动程序。

如果此ping成功，但.local ping失败，则可能是roboRIO主机名配置错误，或者您已连接到尝试解析.local地址的DNS服务器。

Verify that your roboRIO has been imaged for your team number: roboRIO 1 roboRIO 2. This sets the hostname used by mDNS.
：ref：禁用所有其他网络适配器<docs/networking/networking-introduction/roborio-network-troubleshooting:Disabling Network Adapters>

以太网连接

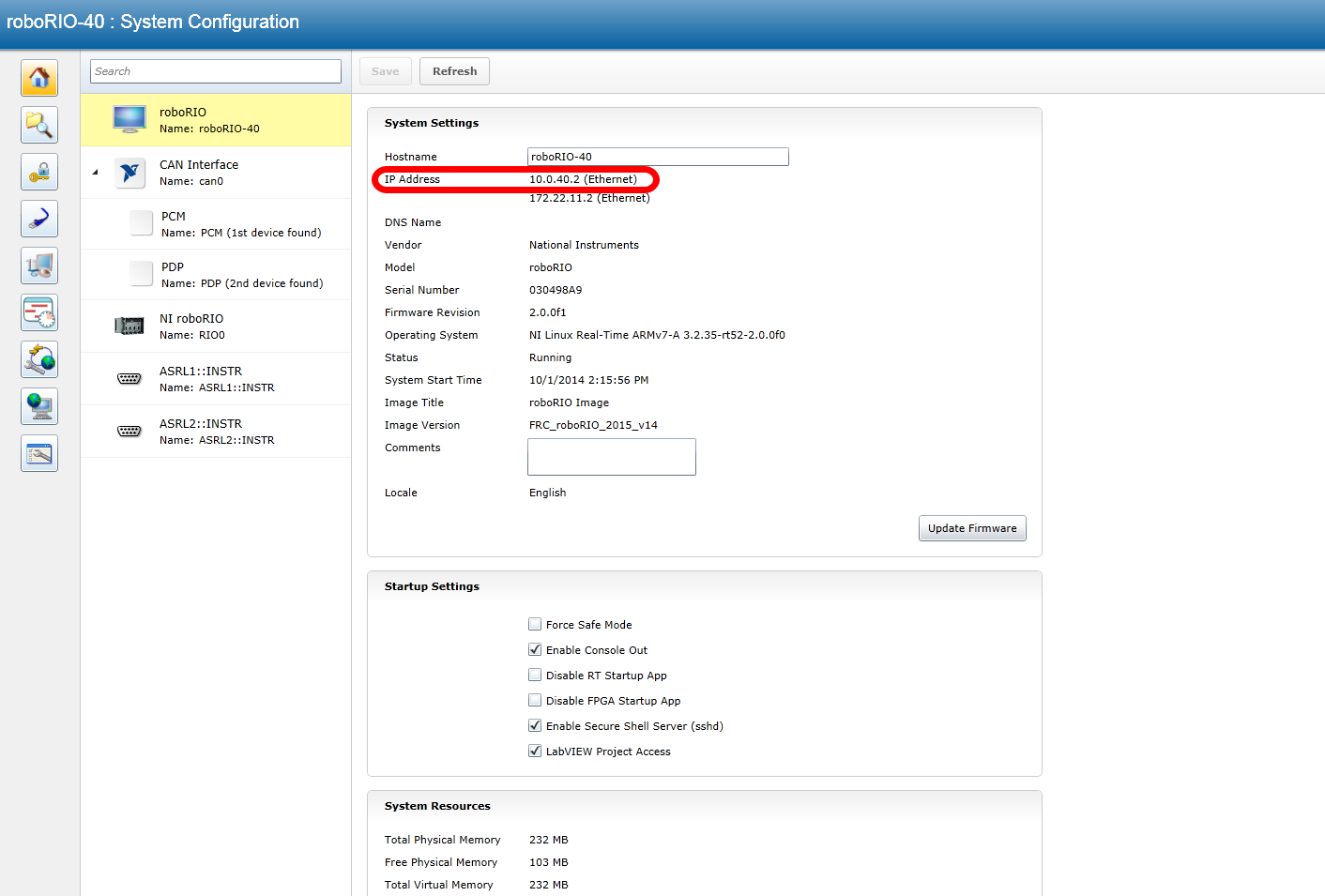

The IP address from the roboRIO webdashboard.

If you are troubleshooting an Ethernet connection, it may be helpful to first make sure that you can connect to the roboRIO using the USB connection. Using the USB connection, open the roboRIO webdashboard and verify that the roboRIO has an IP address on the ethernet interface. If you are tethering to the roboRIO directly this should be a self-assigned 169.*.*.* address, if you are connected to the VH-109 radio, it should be 10.TE.AM.2 where TEAM is your five digit FRC team number(TE.AM IP Notation). If the only IP address here is the USB address, verify the physical roboRIO ethernet connection. If the IP address is 10.TE.AM.XX, ensure you’ve set the roboRIO team number
