Koordinat Sistemleri

FRC ® ‘te, nesnelerin konumlarını temsil etmek için kullandığımız iki ana koordinat sistemi vardır.

Saha Koordinat Sistemi

Saha koordinat sistemi (veya global koordinat sistemi), sahadaki bir noktanın başlangıç noktası olarak belirlendiği mutlak bir koordinat sistemidir. Pozitif :matematik:`theta`(theta), saat yönünün tersi yöndedir ve pozitif x ekseni ittifakınızın sürücü istasyonu duvarından uzaklığı gösterir ve pozitif y ekseni dikeydir ve pozitif x ekseninin solundadır.

In this system the coordinates are fixed based upon the field.

Not

Eksenler, görünürlük için alanın ortasında gösterilir. Her ittifak için koordinat sisteminin kökenleri aşağıda gösterilmiştir.

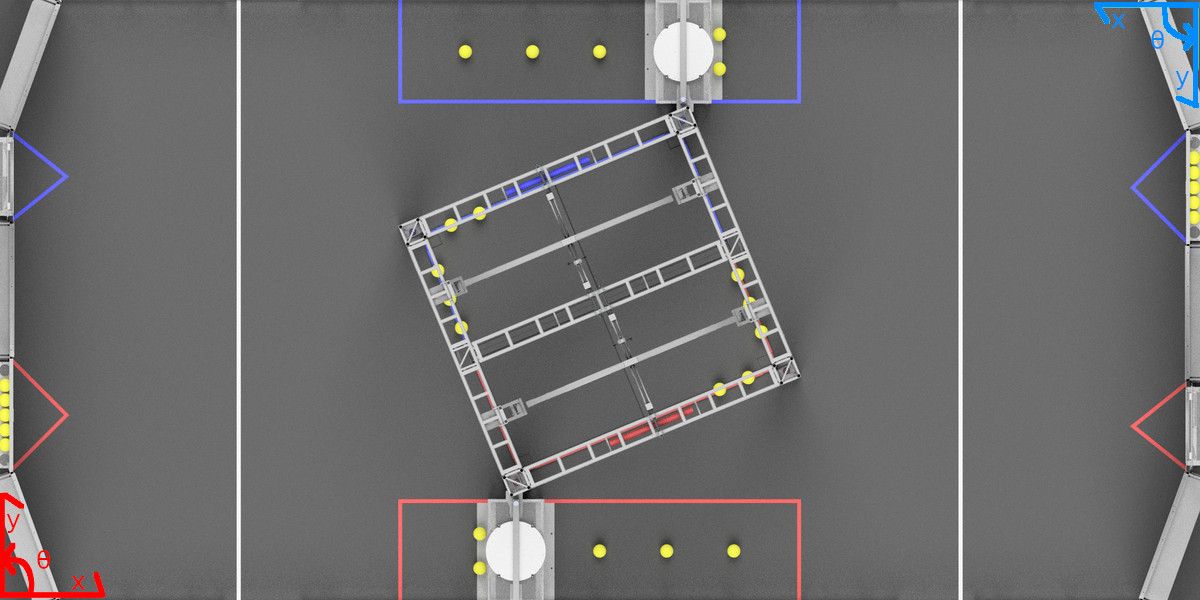

Below is an example of a field coordinate system overlaid on the 2020 FRC field. The red axes shown are for the red alliance, and the blue axes shown are for the blue alliance.

Image of the Infinite Recharge field.

Robot Koordinat Sistemi

Robot koordinat sistemi (veya yerel koordinat sistemi), robotun başlangıç noktası olduğu göreceli bir koordinat sistemidir. Robotun baktığı yön, pozitif x ekseni ve pozitif y ekseni robotun soluna diktir. Olumlu \(\theta\) saat yönünün tersidir.

Not

WPILib’in “Gyro” sınıfı saat yönünde pozitiftir, bu nedenle her iki koordinat sistemiyle dönüşü elde etmek için okumayı ters çevirmeniz gerekir.

The robot coordinate system is based on the robot's position.
